From Shenzhen, China, the supplier of one-stop integrated solutions for injection molds and stamping molds, standard parts are in stock, non-standard parts can be customized
3 Years
| Ask Lasest Price | |
| Brand Name : | GEPE |
| Model Number : | working standard |
| Certification : | RoHS |
| Price : | Negotiation |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 50000 pieces per week |
| Delivery Time : | within 10 day after payment |

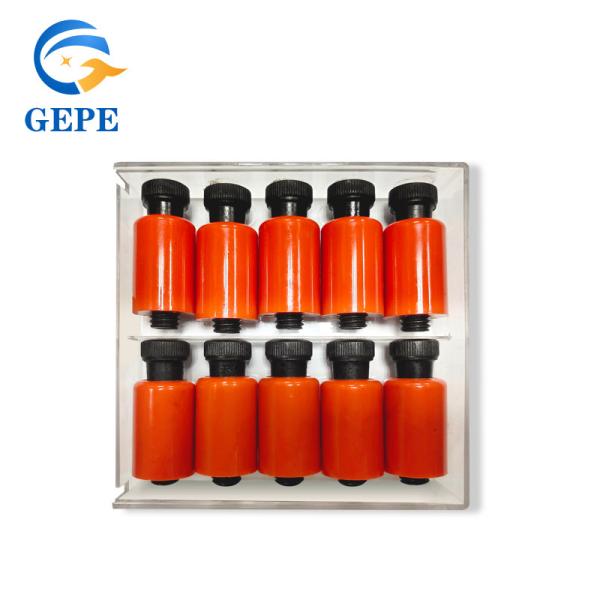

Parting Locks Mould is also called heat resistant parting locks,
resin mold locking device, nylon resin shutter, etc., abbreviated
as PL in English. Its principle is that nylon resin is expanded by
the locking force of tapered bolts, and it is locked by friction
with the template. Nylon sleeve will be worn in the process of use,
and it needs to be adjusted by using tapered bolts to enhance the
locking force. Therefore, for the sake of safety, it is generally
not used in unmanned machines such as automatic injection molding
machines or injection molding with short molding cycle. Because of
its good cost performance, this structure is widely used in molds
or small molds with less production. The locking amount is
generally adjusted according to the movement of the runner push
plate during the die test. When the temperature exceeds 80℃ C, the
nylon will soften and the load will be reduced, so the nylon mold
locking device is not suitable for this kind of mold. In addition,
when the nylon sleeve is stained with oil, the friction coefficient
will decrease and it will not play its due role. If the surface
roughness of the mounting holes on the template is finished to
Ra02~1.6, and the end face is chamfered R, the wear of nylon can be
well prevented. However, the above processing can be omitted when
using a special PLBS sleeve.
| TYPE | ØD | Ød | H | L | M | B | color | ||||
| PO | 10 | 8.5 | 3 | 18 | M5 | 4 | White | Yellow | Orange | Blue | Black |
| 12 | 11 | 3.5 | 20 | M6 | 5 | Available | Available | Available | Available | Available | |
| 13 | 11 | 3.5 | 20 | M6 | 5 | Available | Available | Available | Available | Available | |
| 16 | 14 | 4 | 25 | M8 | 6 | Available | Available | Available | Available | Available | |
| 20 | 16 | 5 | 30 | M10 | 8 | Available | Available | Available | Available | Available | |
The product is usually used to control the opening and closing
between different templates. The nylon is buried about 3 m from the
moving template, and the inner surface of the fixed template hole
is machined to the range of Ra1.6-Ra,2, and the entrance of the
template surface is machined with the chamfering angle R. If C
chamfer is machined, its durability will be reduced.
Reference of hole size tolerance: H7 is hole when PL10 is used, and
H7 is hole +0.1mm when PL13, 16 and 20 are used as the benchmark.
If special PLBS is used, the above procedures of rounding angle R
and polishing can be omitted.
| Product Name | Parting Locks Mould | Material | Nylon resin Alloy Steel |
| Place of Origin | Guangdong, China | Sizes | 10 /12 /13/ 16/20 |
| Quality | 12pcs one box | Color | Green White Red Blue |
| Set | Taper bolt+ Resin Sleeve | Standard | MISUMI GB |
1. Adjust the friction between the template and the resin by the
inclined screw, and the mold can be closed and closed for about
50,000 times after about 1/4 turn;
2. When in use, the mold device is easy and simple to remove;
3. This product can be used in three-plate die, complex two-plate
die, secondary ejection mechanism and other occasions;
4. Different models, specifications and quantities can be selected
according to different mold weights.
5 .According to different conditions of use, you can choose
high-temperature resistant type and ordinary type.
6. We have standard parts in stock. Please refer to the size table
above. Generally, the goods can be delivered within 3 working days.
If you need to customize non-standard parts, the delivery time is
generally 15-20 days. For the customization of non-standard parts,
please give us your drawings, clearly indicating the requirements
of size, tolerance, material and quantity, and then we will quote
you a preferential price.
1) Competitive factory price with good quality.
2) Low MOQ (1pcs rapid prototype samples available).
3) Short lead time (3-30 working Days according quantity).
4) Advanced measurement equipment.
5) Quality Control: 100% inspection before shipment.
6) Rich experience and good technology support
( have more than 20 years experience in producing various kinds of
precision part).
7)Shipment from Shenzhen, close to Hong Kong, with major ports and
airports, convenient transportation.
Products are packed in plastic shells and outside in cartons. As
for shipping, all well-known express delivery companies and ocean
shipping companies can choose, but only EMS can be used in remote
areas. Terms of shipment, such as EXW, FOB and CIF, are available.
|
|
