    Customized Guide Pillar HRC50-HRC55 For Plastic Injection Mold

    Ask Lasest Price
    Brand Name : GEPE
    Model Number : Guide Components
    Certification : RoHS
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 pieces per week
    Delivery Time : 10~15 work days
    • Product Details
    • Company Profile

    Customized Guide Pillar HRC50-HRC55 For Plastic Injection Mold

    High-Quality Guide Pillar For Plastic Injection Mold, Standard Specification Or Non-Standard Customization

    Description

    The guide pillar is a guiding part used in the mold and matched with the guide sleeve, which plays a guiding role. Generally, it is used in occasions with high precision requirements for molds. If it is used together with fine positioning parts (taper fine positioning pin, quick taper fine positioning, etc.), the alignment and positioning of the cavity will be more precise.

    The guide pin is usually made of bearing steel and die steel. Bearing steel GCr15 is a kind of high-carbon chromium bearing steel, which has high hardness, uniformity and wear resistance after quenching and hardening. It is the most widely used bearing steel because of its ability to harden to HRC55 and high carbon wear resistance. High hardness, wear resistance but not high temperature resistance, suitable for various bearing rings and rolling elements. It is also used to manufacture molds and measuring tools, including guide pins and ejector pins of various molds.

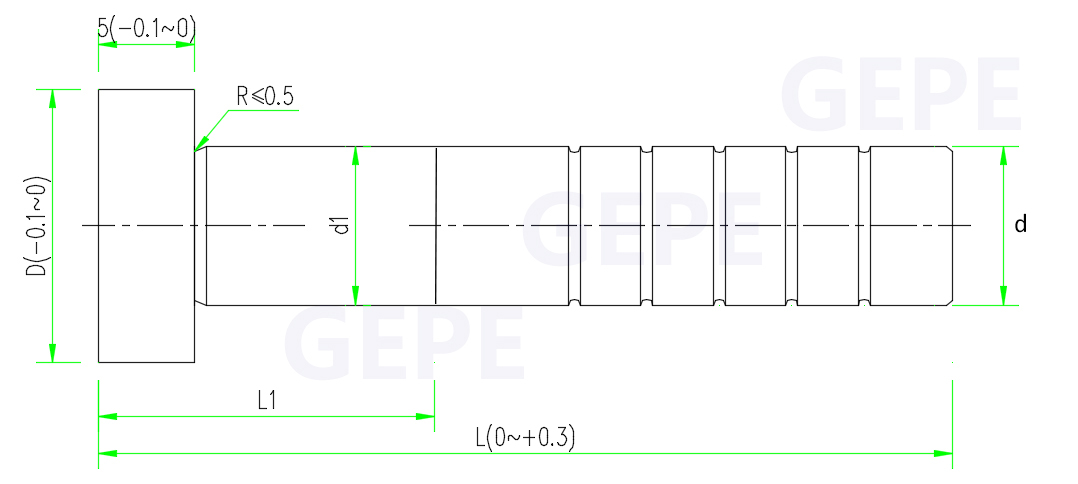

    dimensional drawing






    Product features


    Product Name

    Plastic mould

    Guide Pillar
    MaterialGCr15/SUJ2
    HardnessHRC50~55Heat treatment methodHigh frequency quenching
    production addressShenZhen,GuangDong,ChinaSizeCustomized Size
    StandardStandard Hardware/ Plastic Parts as per MISUMI, DME, HASCO, FIBRO, CUMSA, STRACK, DAYTON NON-Standard parts can be designed or
    made customized

    Remarks

    We have standard parts in stock. Please refer to the size table above. Generally, the goods can be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please give us your drawings, clearly indicating the requirements of size, tolerance, material and quantity, and then we will quote you a preferential price.

    Product display


    Why choose us

    • Quick Response

    Your inquiry will be replied within 24 hours.

    • High Quality

    Well-trained workers and more than 10 years experience.

    • Competitive Price

    Directly from factory to save your money.

    • Short Lead Time

    Being efficient:3-7 days for samples and 10-35 days for quantity orders.

    • Flexibility

    Small orders are acceptable for quick delivery and to help you reduce stock cost.

    • OEM

    Custom fabrication according to your drawings ,samples or designs.


    HOW TO BUY



    Packing and Shipping

    Products are packed in plastic shells and outside in cartons. As for shipping, all well-known express delivery companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Terms of shipment, such as EXW, FOB and CIF, are available.
