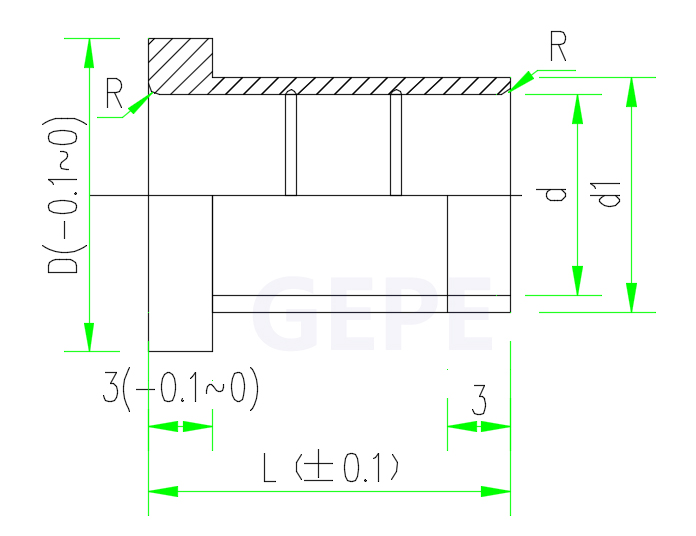

The guide bush is a kind of mold parts, which is used together with the guide pins to guide and ensure the accuracy of the movement. In the inner cylindrical surface usually has oil grooves, the quantity depend on the length of the guide bush.
| Type | Ød | Ød1 | L1 | ØD | L | |
| (-0.015~-0.010) | measure | tolerance | ||||
| GP | 10 | 10 | 0.015 +0.010 | 19 | 12 | 40/50/60/70/80/90/100/110/120 |
| 12 | 12 | 14 | 40/50/60/70/80/90/100/110/120/130/140/150 | |||
| 14 | 14 | 16 | 40/50/60/70/80/90/100/110/120/130/140/150 | |||
| 16 | 16 | 18 | 40/50/60/70/80/90/100/110/120/130/140/150 | |||
| 18 | 18 | 20 | 40/50/60/70/80/90/100/110/120/130/140/150 | |||
| 20 | 20 | 0.02 +0.015 | 24 | 22 | 40/50/60/70/80/90/100/110/120/130/140/150 | |
| 22 | 22 | 24 | 40/50/60/70/80/90/100/110/120/130/140/150 | |||
| 25 | 25 | 28 | 40/50/60/70/80/90/100/110/120/130/140/150 | |||
| Type | Ød | Ød1 | ØD | L |
| (-0.005~0) | (0~0.01) | |||
| GA | 10 | 14 | 17 | 15/20/22/25/30/35/40/45 |
| 12 | 17 | 20 | 15/20/22/25/30/35/40/45/50 | |
| 14 | 19 | 22 | 15/20/22/25/30/35/40/45/50 | |
| 16 | 22 | 25 | 15/20/22/25/30/35/40/45/50 | |
| 18 | 23 | 26 | 15/20/22/25/30/35/40/45/50 | |
| 20 | 25 | 28 | 15/20/22/25/30/35/40/45/50 | |
| 25 | 32 | 35 | 15/20/22/25/30/35/40/45/50 |
| Product Name | Punching Mold Guide Pillar and sleeve | Material | 20CR,40CR,SUJ2,SKD11 |
| Hardness | HRC54-56,HRC58-60 | Heat treatment method | High frequency quenching, vacuum heat treatment, quenching and tempering treatment |
| production address | ShenZhen,GuangDong,China | Size | Customized Size |
| Standard | Standard Hardware/ Plastic Parts as per MISUMI, DME, HASCO, FIBRO,
CUMSA, STRACK, DAYTON NON-Standard parts can be designed or made customized | ||
We have standard parts in stock. Please refer to the size table above. Generally, the goods can be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please give us your drawings, clearly indicating the requirements of size, tolerance, material and quantity, and then we will quote you a preferential price.
Your inquiry will be replied within 24 hours.
Well-trained workers and more than 10 years experience.
Directly from factory to save your money.
Being efficient:3-7 days for samples and 10-35 days for quantity orders.
Small orders are acceptable for quick delivery and to help you reduce stock cost.
Custom fabrication according to your drawings ,samples or designs.
Products are packed in plastic shells and outside in cartons. As for shipping, all well-known express delivery companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Terms of shipment, such as EXW, FOB and CIF, are available.
|
|
