From Shenzhen, China, the supplier of one-stop integrated solutions for injection molds and stamping molds, standard parts are in stock, non-standard parts can be customized
3 Years
| Ask Lasest Price | |
| Brand Name : | GEPE |
| Model Number : | ejector sleeves L24-08 |
| Certification : | RoHS |
| Price : | Nagotiation |
| Payment Terms : | Western Union, L/C, T/T |
| Supply Ability : | 80000~100000 pieces per month |
| Delivery Time : | within 7 day after payment |

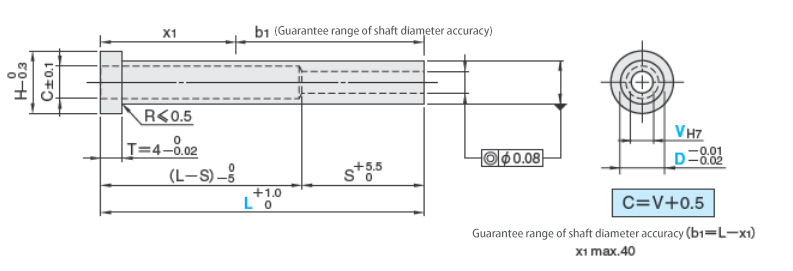

The bobbin is also called pipe jacking and pipe pushing. When the cylinder is ejected, the ejection force is large and
uniform. When there are circular through holes or blind holes on
the product and the glue position must be ejected, it is very
suitable to use the cylinder ejection.
SKD61 has good toughness and high temperature fatigue resistance. It can withstand temperature fusion. It is suitable for long-term work at high temperature. It has good cutting performance and polishing performance. It is the best material for making ejector pins and cylinders.
SKD61 is also suitable for the manufacture of high-volume plastic molds. The nitriding treatment can obtain a good hardened layer structure on the surface of the mold, and improve the wear resistance and corrosion resistance.
| Shaping Mode | Plastic Injection Mould/Compression Mould | Place of Origin | Guangdong, China |
| Material | SKD61 | Treatment | Nitrided |
| hardness | 48-52HRC | MOQ | Negotiation |
According to HASCO standard, we have the following standard sizes
of thimbles in stock, generally can be shipped within 3 working

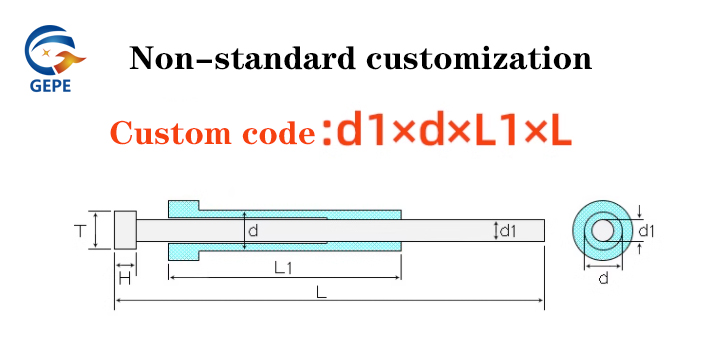

days, if customized thimbles, delivery time is generally 10-20
days.
| Rod diameter | Diameter of Head*Height of Head(D*H) | Rod diameter | Diameter of Head*Height of Head(D*H) |
| 0.8 | 2.5*1.2 | 5.5 | 10*3 |
| 1 | 2.5*1.2 | 6 | 12*5 |
| 1.1 | 2.5*1.2 | 6.2 | 12*5 |
| 1.2 | 2.5*1.2 | 6.5 | 12*5 |
| 1.3 | 3*1.5 | 7 | 12*5 |
| 1.4 | 3*1.5 | 7.5 | 12*5 |
| 1.5 | 3*1.5 | 8 | 14*5 |
| 1.6 | 3*1.5 | 8.2 | 14*5 |
| 1.7 | 3*1.5 | 8.5 | 14*5 |
| 1.8 | 3*1.5 | 9 | 14*5 |
| 1.9 | 3*1.5 | 10 | 16*5 |
| 2 | 4*2 | 10.2 | 16*5 |
| 2.2 | 4*2 | 10.5 | 16*5 |
| 2.5 | 5*2 | 11 | 16*5 |
| 2.7 | 5*2 | 12 | 18*7 |
| 3 | 6*3 | 12.2 | 18*7 |
| 3.2 | 6*3 | 12.5 | 18*7 |
| 3.5 | 7*3 | 13 | 20*7 |
| 3.7 | 7*3 | 14 | 22*7 |
| 4 | 8*3 | 14.5 | 22*7 |
| 4.2 | 8*3 | 16 | 22*7 |
| 4.5 | 8*3 | 18 | 24*7 |
| 5 | 10*3 | 20 | 26*8 |
| 5.2 | 10*3 | 25 | 32*10 |
| 32 | 40*10 |
Ejector Pins And Sleeves is sealed with plastic bag, which contains
antirust oil, and the outside is packed with carton. As for
shipping, all well-known express companies and ocean shipping
companies can choose, but only EMS can be used in remote areas.
Shipping terms such as EXW, FOB and CIF are available.
|
|
