From Shenzhen, China, the supplier of one-stop integrated solutions for injection molds and stamping molds, standard parts are in stock, non-standard parts can be customized
3 Years
| Ask Lasest Price | |
| Brand Name : | GEPE |
| Model Number : | GP SD2 |
| Certification : | R0SH |
| Price : | Negotiation |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100K per Day |
| Delivery Time : | 3-7days |

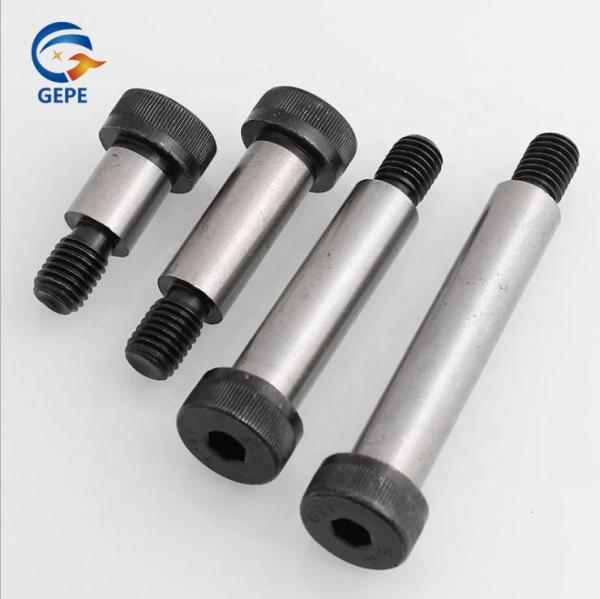

M16 Shoulder Bolts Class12.9 Hex Socket Head Shoulder Screws ISO7379 Fasteners
Description
Saida screws is a common fastener, which is widely used in machinery, electronics, automobiles and other fields.
Dimensional Drawing
| Size | D | A | H | D1 | E | T | J | ||||
| Shoulder Diameter | Head Diameter | Head Thickness | Thread Diameter | Pitch | Thread Length | Hex Depth | Hex Size | ||||
| Max | Min | Max | Min | Max | Min | Max | Min | ||||
| 20.0 | 19.980 | 19.928 | 30.0 | 29.67 | 14.0 | 13.73 | M16 | 2.00 | 22.40 | 8.8 | 10.0 |
Product features
| materials | Stainless steel, Steel,SCM435 | Thread type | Metric |
| hardness | 33~35HRC | size | customized |
| Length of Rod | 20, 25, 30, 35, 40, 45...90,100,110,120,130... 200mm(max.) | MOQ | Negotiation |
We have standard size Shoulder Bolts, which can usually be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please provide your drawings and indicate the requirements of size, tolerance, material and quantity, and we will provide you with preferential quotations.
Why choose us
HOW TO BUY
Packing and Shipping
The Shoulder Bolts is sealed with plastic bag, which contains antirust oil, and the outside is packed with carton. As for shipping, all well-known express companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Shipping terms such as EXW, FOB and CIF are available.
|
|
