From Shenzhen, China, the supplier of one-stop integrated solutions for injection molds and stamping molds, standard parts are in stock, non-standard parts can be customized
3 Years
| Ask Lasest Price | |
| Brand Name : | GEPE |
| Model Number : | working standard |
| Certification : | RoHS |
| Price : | Negotiation |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 80000~100000 pieces per month |
| Delivery Time : | 3~7 work days |
Die punches include high-speed steel punches and tungsten steel punches, and high-speed steel is the most commonly used material, such as CR12, CR12MOV, asp23, skd11, skd51, skd61, etc. Tungsten steel materials are generally used in punching and shearing dies with higher requirements.

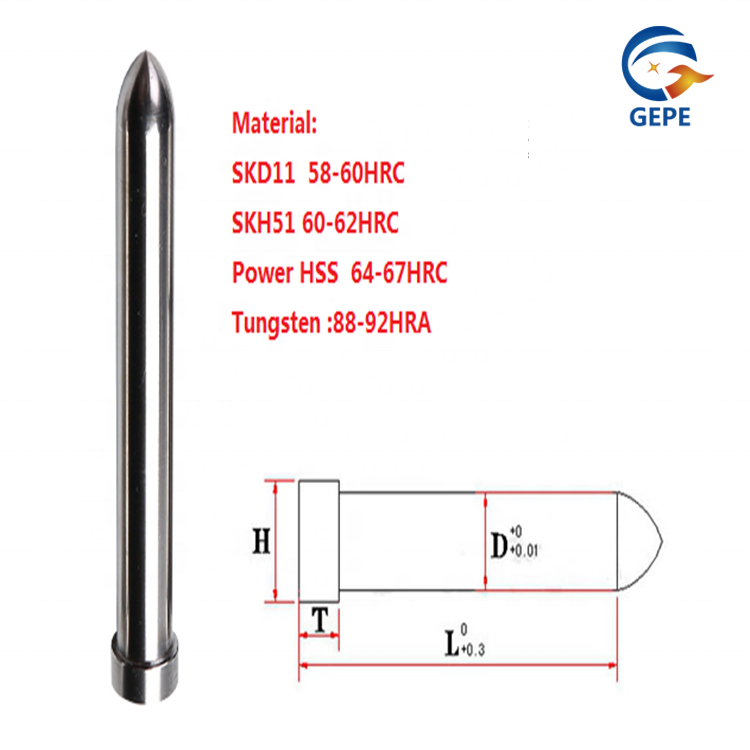

| H | D | T | L |
| 2 | 1 | 5 | 40/50/60/70/80/90/100 |
| 4 | 1.5 2 | 40/50/60/70/80/90/100 | |
| 5 | 2.5 3 | 40/50/60/70/80/90/100 | |
| 6 | 3.5 4 | 40/50/60/70/80/90/100 | |
| 7 | 4.5 5 | 40/50/60/70/80/90/100 | |
| 8 | 5.5 6 | 40/50/60/70/80/90/100 | |
| 9 | 6.5 7 | 40/50/60/70/80/90/100 | |
| 10 | 7.5 8 | 40/50/60/70/80/90/100 | |
| 12 | 8.5 9 | 40/50/60/70/80/90/100 | |
| 12 | 9.5 10 | 40/50/60/70/80/90/100 | |
| 13 | 11 | 40/50/60/70/80/90/100 | |
| 14 | 12 | 40/50/60/70/80/90/100 | |
| 16 | 13 | 40/50/60/70/80/90/100 | |
| 17 | 14 | 40/50/60/70/80/90/100 | |
| 18 | 15 | 40/50/60/70/80/90/100 | |
| 19 | 16 | 40/50/60/70/80/90/100 | |
| 20 | 17 | 40/50/60/70/80/90/100 | |
| 21 | 18 | 40/50/60/70/80/90/100 | |
| 22 | 19 | 40/50/60/70/80/90/100 | |
| 23 | 20 | 40/50/60/70/80/90/100 | |
| 28 | 25 | 40/50/60/70/80/90/100 |
| Shaping Mode | Punching Mold | Product Name | Punch Pins |
| Product Material | SKD61,SKH51 ,SKD11 ,SKH40 | Order | Provide drawings |
| Rod diameter tolerance | 0~+0.02 | standard | JIS, AISI, ASTM, GB, DIN, EN |
| Non-standard customization | Available | Place of Origin | Guangdong, China |
Remarks:
we have punch pins with standard dimensions of rod diameter φ1.0~φ25 in stock, which can generally be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please give us your drawings, clearly indicate the requirements of size, tolerance, material and quantity, and then we will quote you preferential prices.
The punch pins is sealed with plastic bag, which contains antirust oil, and the outside is packed with carton. As for shipping, all well-known express companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Shipping terms such as EXW, FOB and CIF are available.
|
|
