From Shenzhen, China, the supplier of one-stop integrated solutions for injection molds and stamping molds, standard parts are in stock, non-standard parts can be customized
3 Years
| Ask Lasest Price | |
| Brand Name : | GEPE |
| Model Number : | RoHS |
| Certification : | RoHS |
| Price : | Negotiation |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability : | 80000~100000 pieces per month |
| Delivery Time : | within 15 work days |

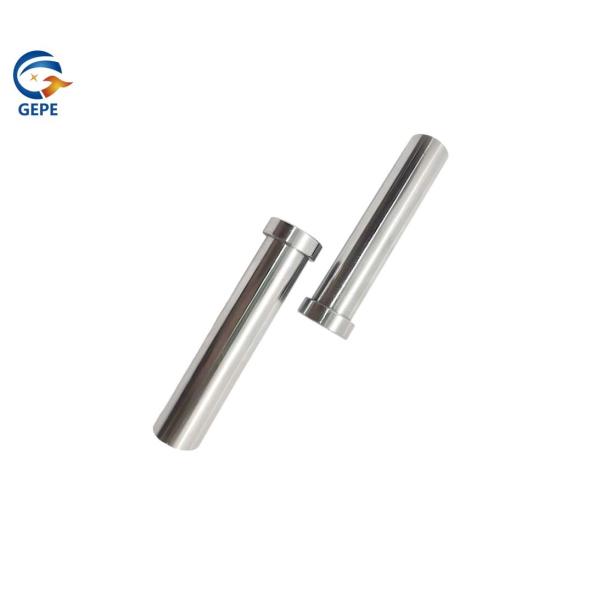

Tungsten steel thimble is a thimble made of high-quality tungsten steel material by grinding and polishing with precision equipment. It is commonly called thimble, supporting needle, double thimble, flat thimble, insert needle and PIN needle. Because of its high hardness of 92.0HRA and bending strength of 4000MPa, the high-quality tungsten steel material has high wear resistance and excellent corrosion resistance. It is usually used in plastic molds to separate plastic products from the molds, and can also be used to penetrate thin and long pinholes, and is often used on lathes and grinders to support the workpiece and make it rotate around it. It is also suitable for making tungsten steel electrode rods in photoelectric industry, with the tip angle controlled between 10 and 15, and is mainly used for supporting (jacking up) the auxiliary vacuum adsorption system on the equipment of automatic die bonder.
dimensional drawing
| materials | Tungsten | type | Ejector pins for plastic mould |
| hardness | HRA:92 | size | 0.005mm or Customized |
| Rod diameter tolerance | 0.005 or Customized | MOQ | Negotiation |
Remarks
The thimble has high hardness and wear resistance, but it is not resistant to high temperature. It is suitable for plastic molds, not for die casting or forging dies.
Non-standard customization
we have ejector pins with standard dimensions of rod diameter φ1.0~φ25 in stock, which can generally be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please give us your drawings, clearly indicate the requirements of size, tolerance, material and quantity, and then we will quote you preferential prices.
Product display
The ejector pin is sealed with plastic bag, which contains antirust oil, and the outside is packed with carton. As for shipping, all well-known express companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Shipping terms such as EXW, FOB and CIF are available.
|
|
